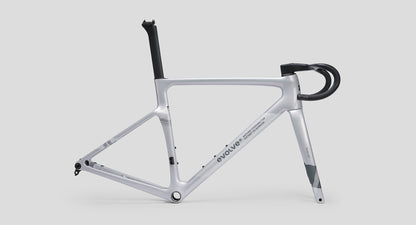

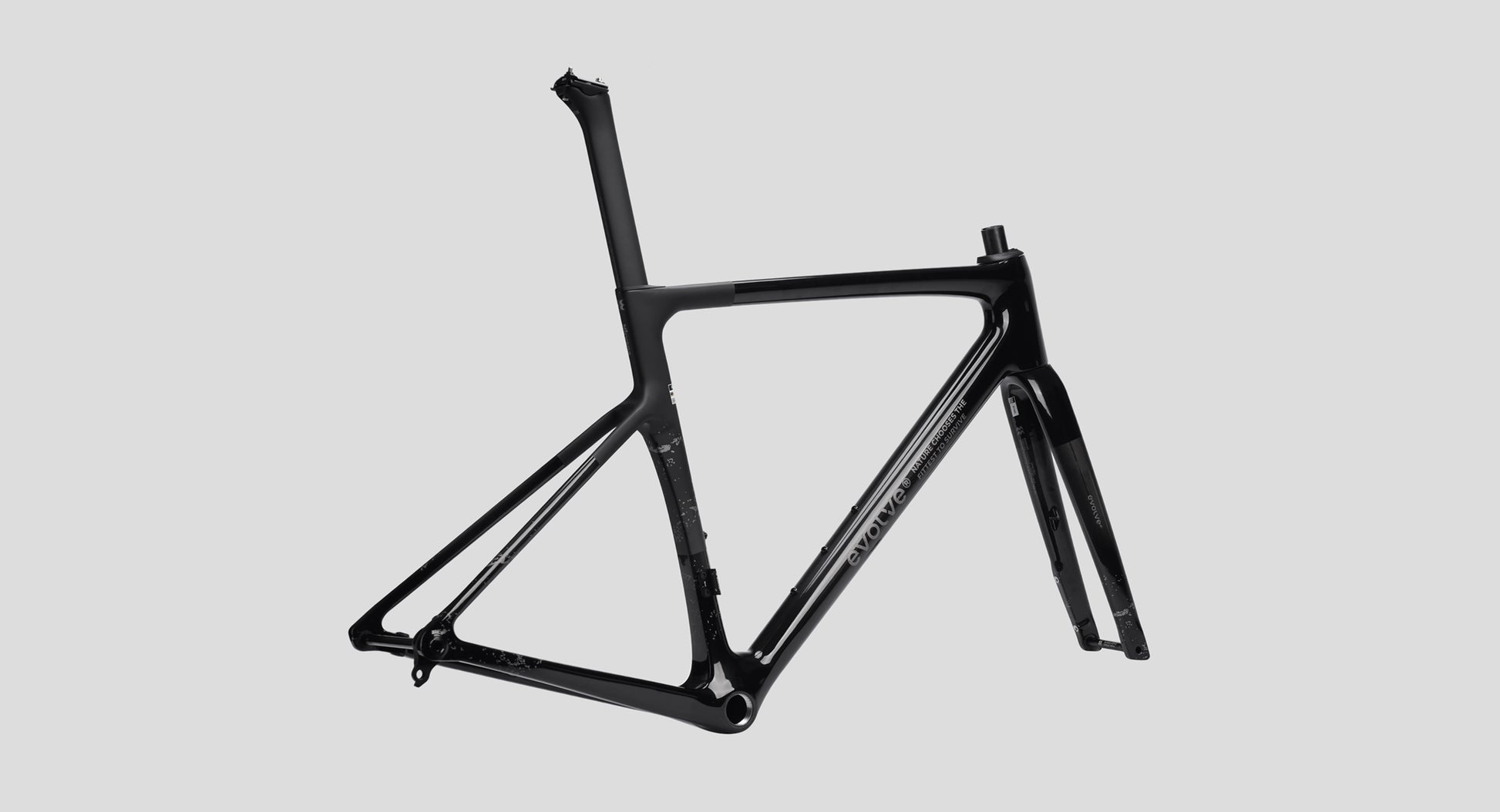

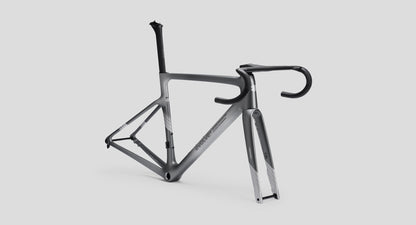

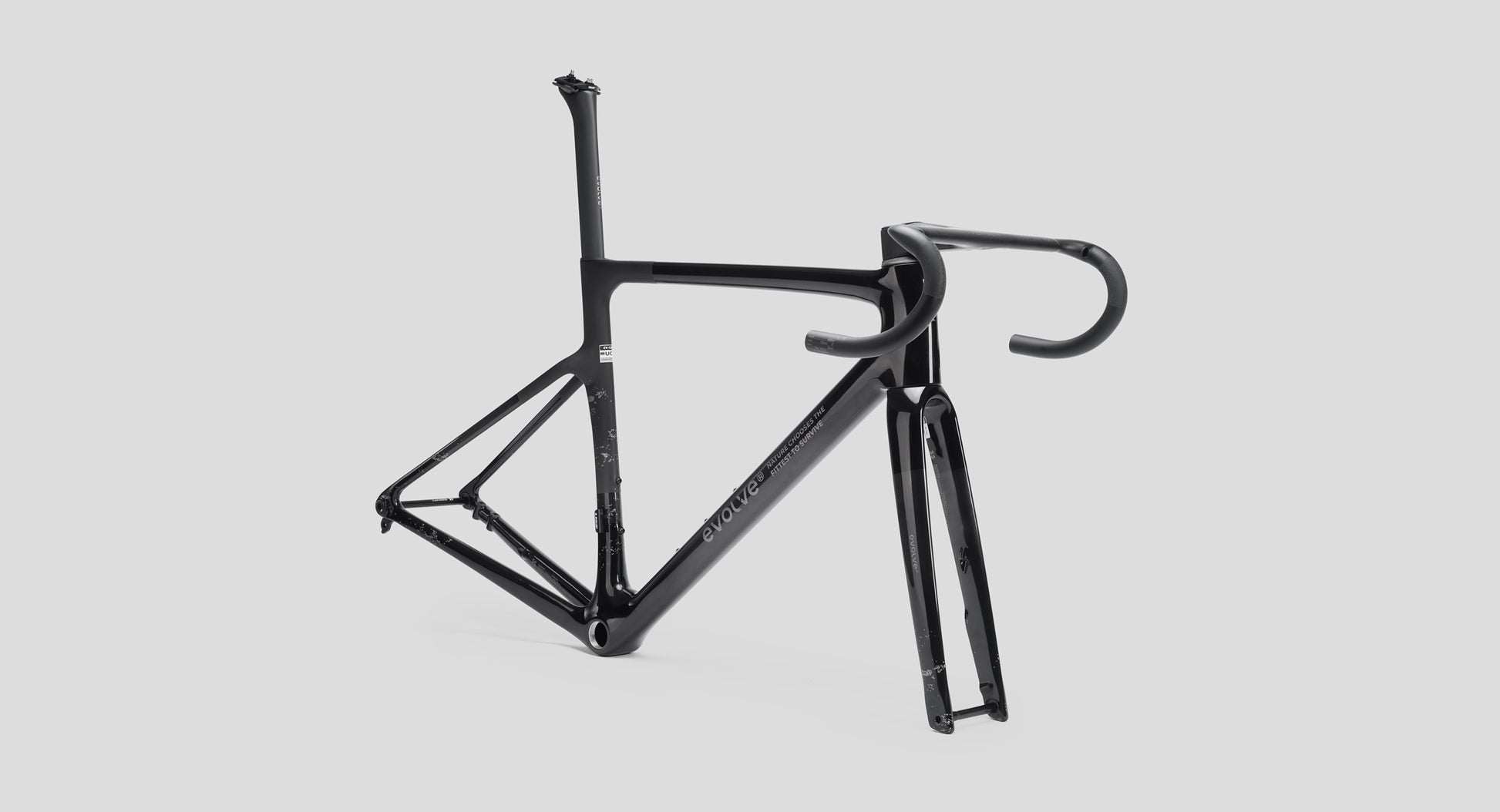

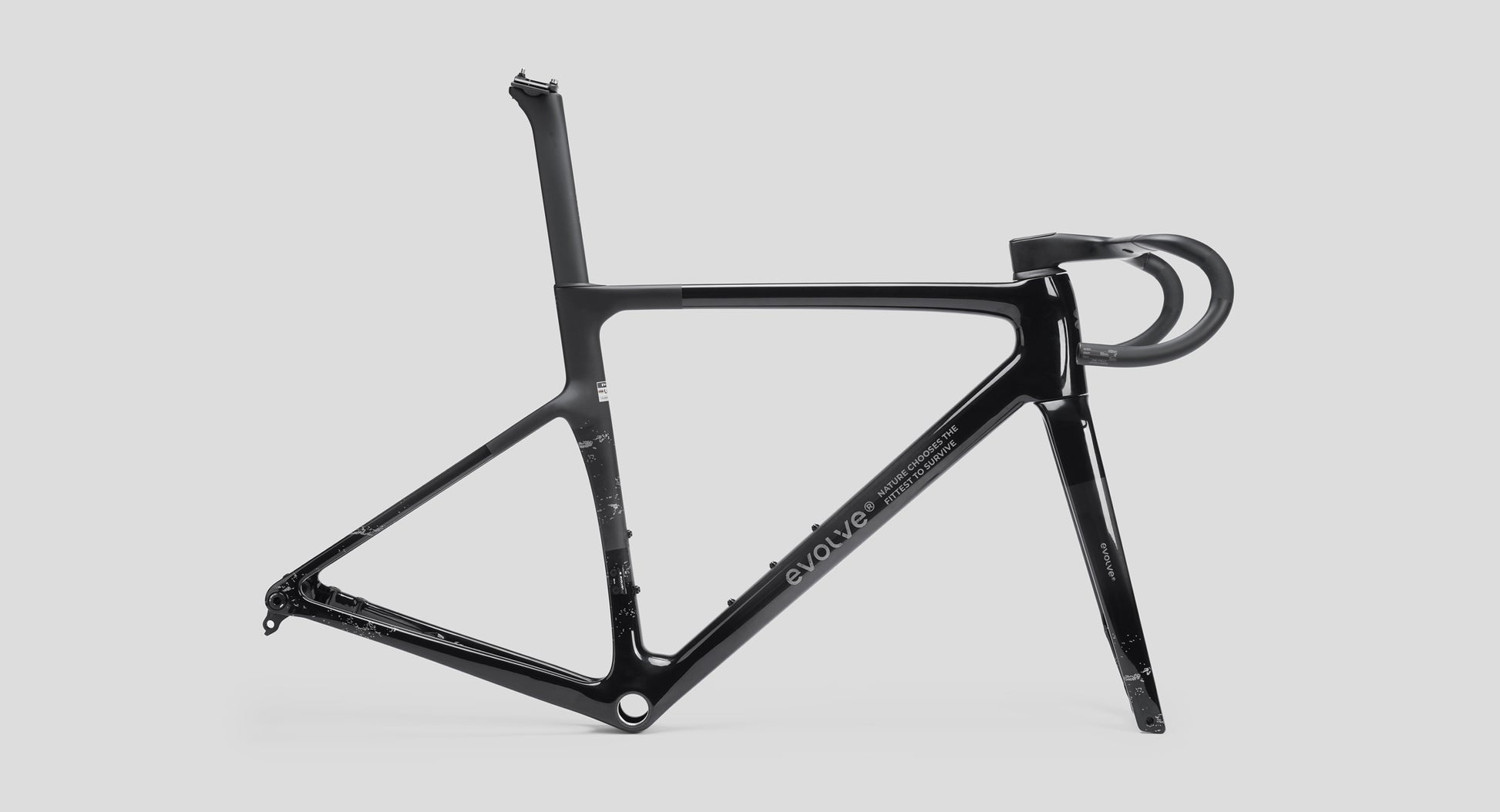

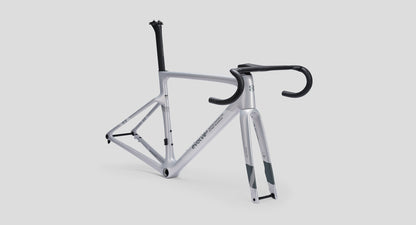

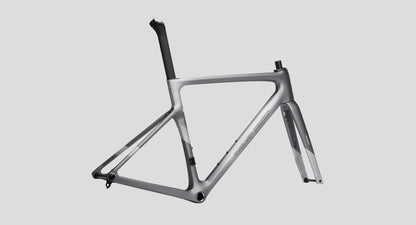

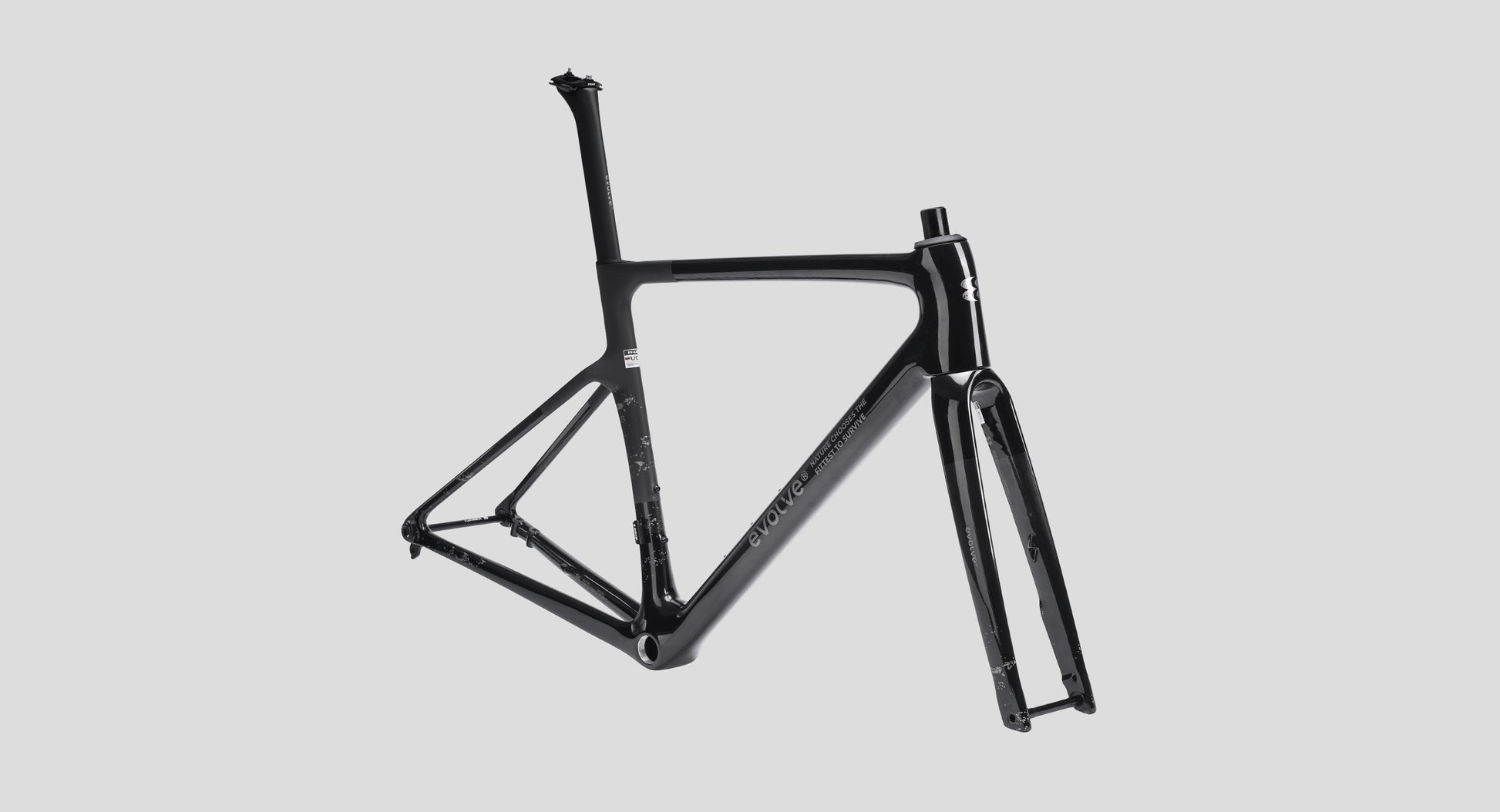

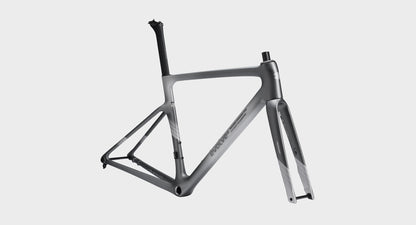

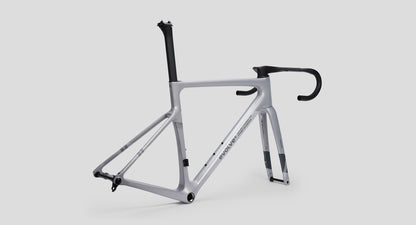

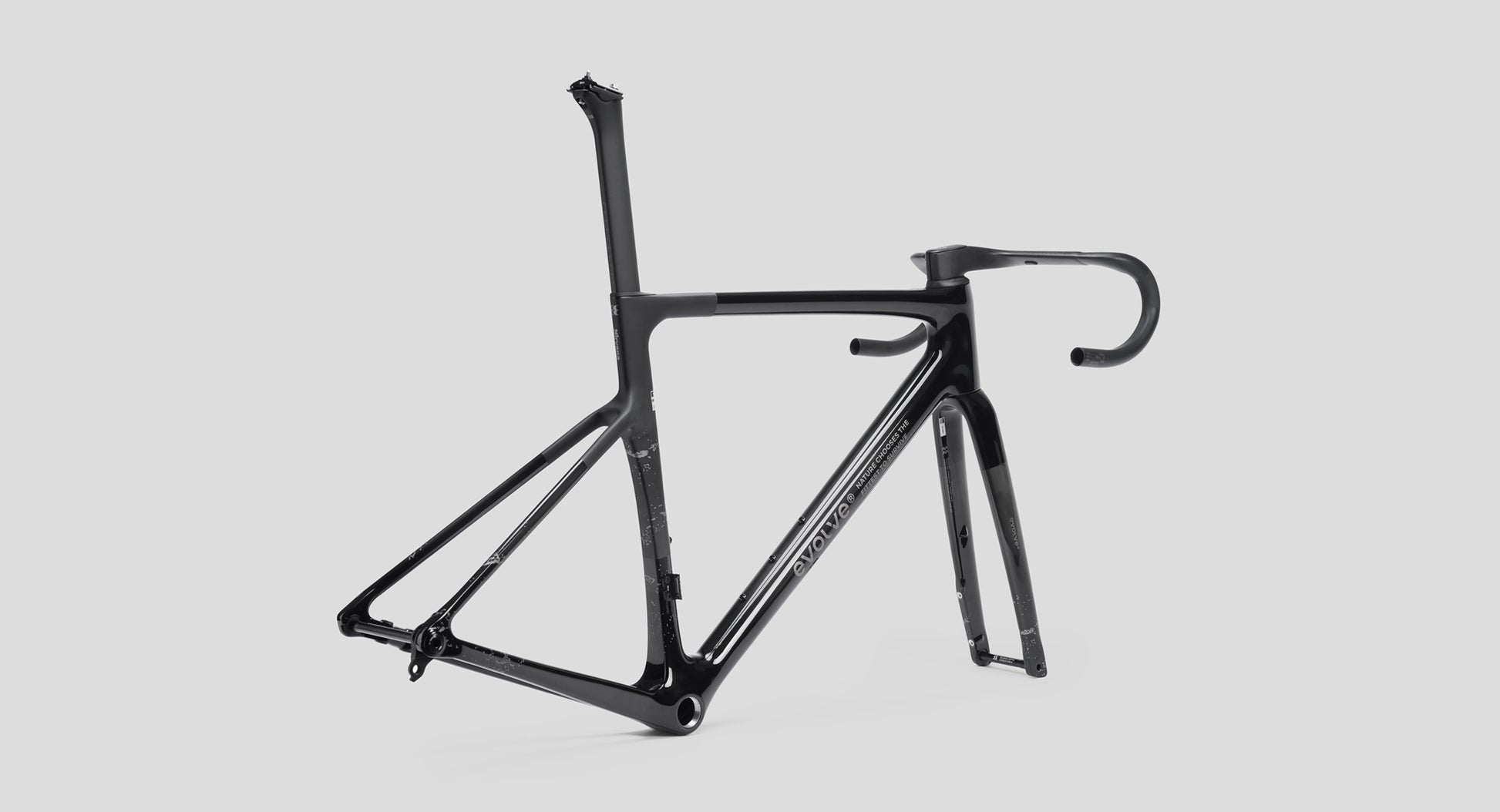

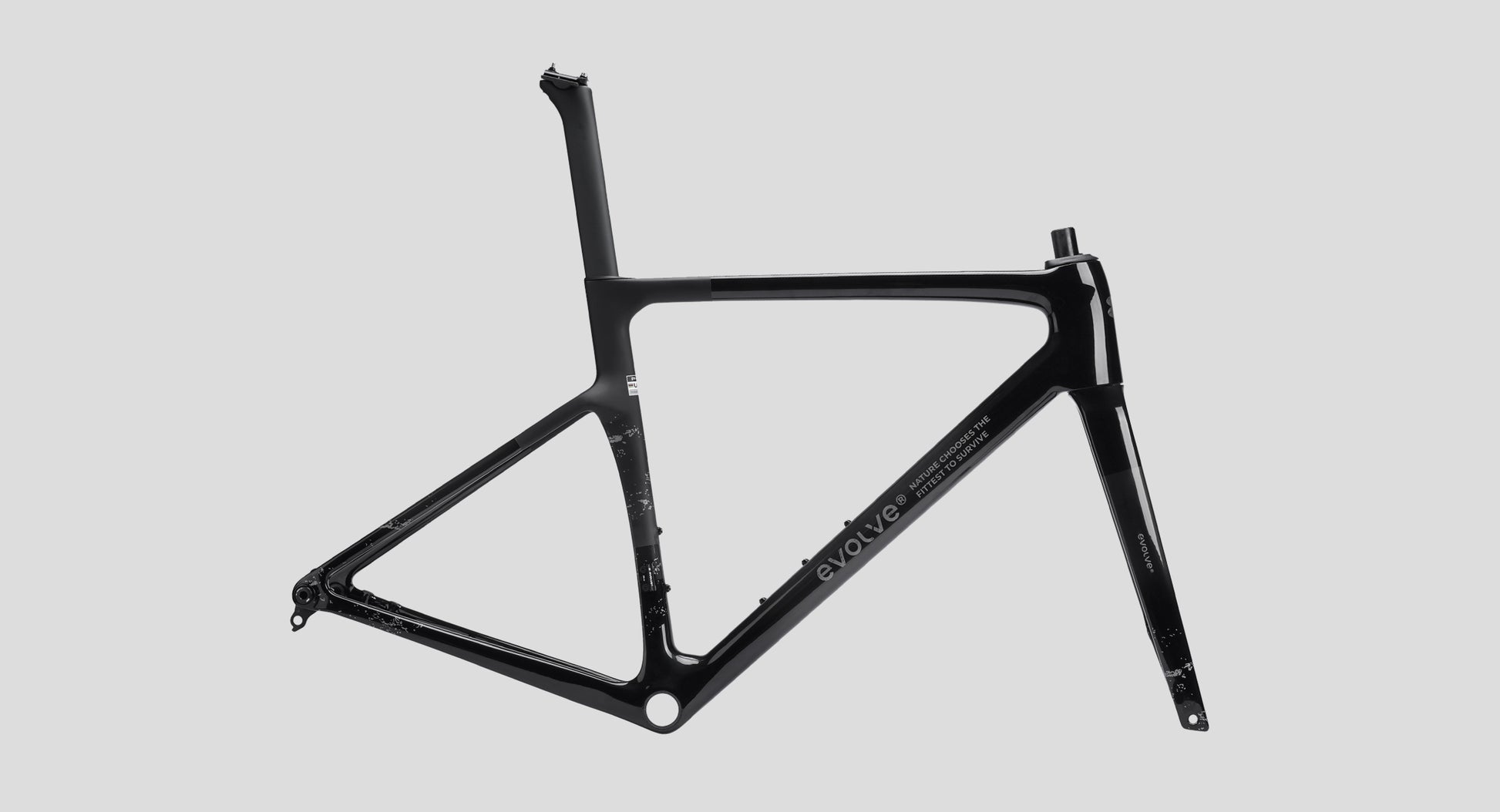

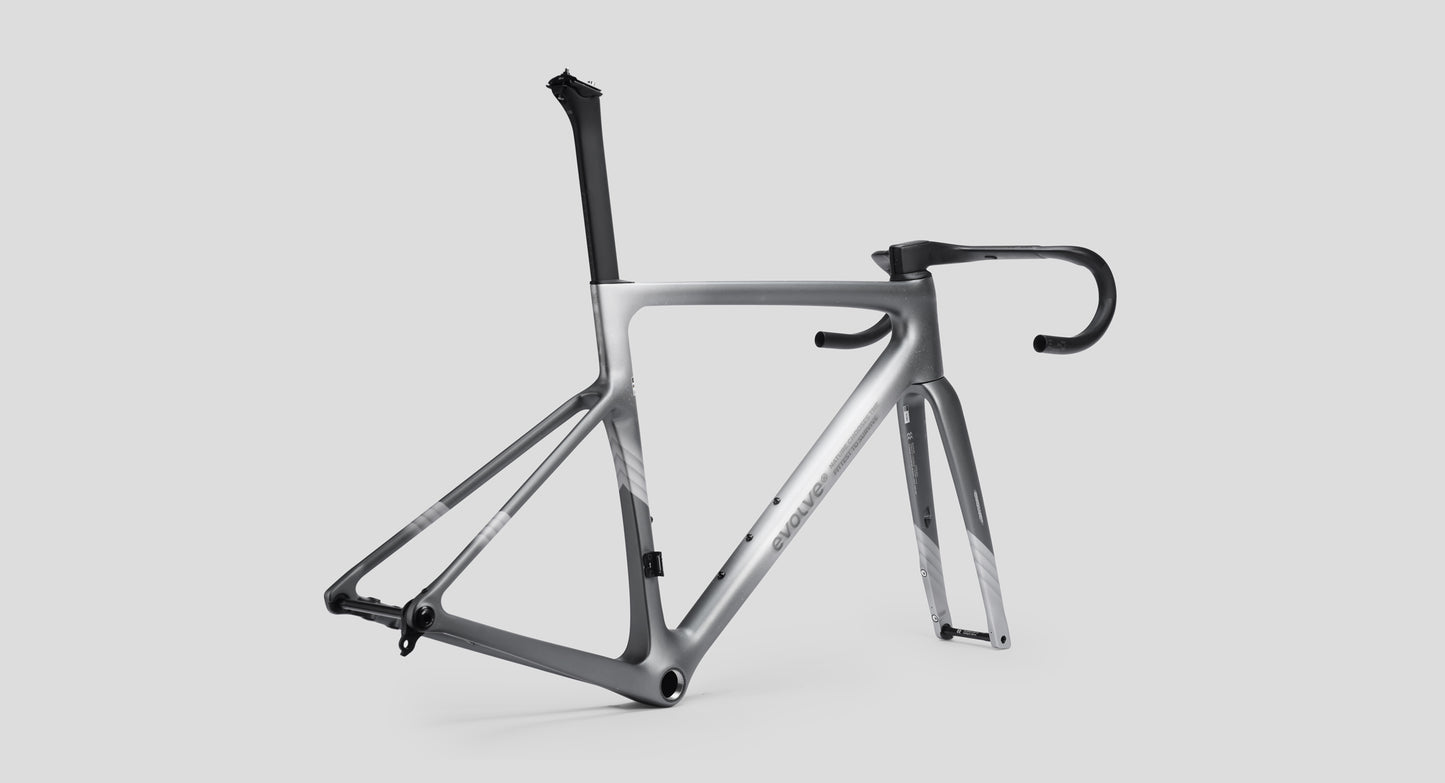

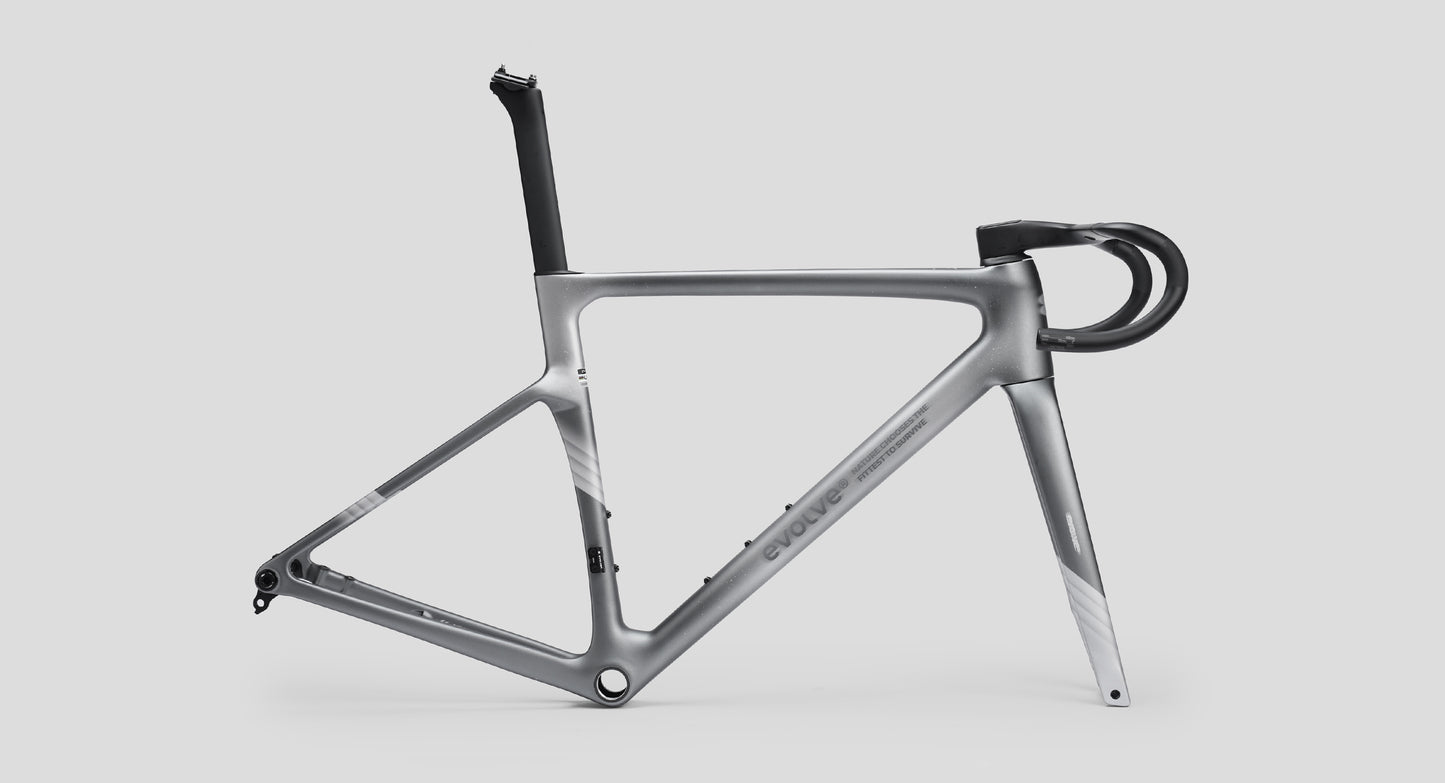

Evolve CIMA Frameset

*Note: On backorder, usually shipped in 30-45 days
Includes the CIMA frame and fork, seatpost, and all essential components.

Get the KREUZA Apex One-piece Handlebar for just $200 when purchased with the Evolve CIMA Frameset!

Specifications
Frame Material:    TORAYCA T1100, T800 & M40
Frame Sizes:    XS, S, M, ML, L, XL
Frame Weight:    650g (M-sized; unpainted)
Fork    Offset 44.0mm (XS \ S \ M); Offset 40.2mm (ML \ L \ XL)
Fork Weight:    355g (unpainted)
Headset:    CeramicSpeed SLT Bearing
Headset Bearing Size:    40.5 mm ID x 49.5 mm OD x 6.5 mm
Head Tube Diameter:    49.5mm
Seatpost:    evolve® Seatpost
Seatpost Weight:    140g（Parts included）
Saddle Rail Clamps:    7x7, 7x9, 7x10
Bottom Bracket:    BSA Threaded Bottom Bracket,68mm Width
Cable Routing:    Internal
Rear Derailleur Hanger:    Sram UDH M12x1mm
Compatible Components:    Electronic Only
Brake Type:    Flat Mount Disc Only
Max Rotor Size:    160mm F&R
Max Chainring:    58-tooth
Front Axle:    12 x 100mm
Rear Axle:    12 x 142mm
Wheel Size:   700C
Tire Clearance:    24C-32C
Manufacturer Warranty    Limited Lifetime Warranty

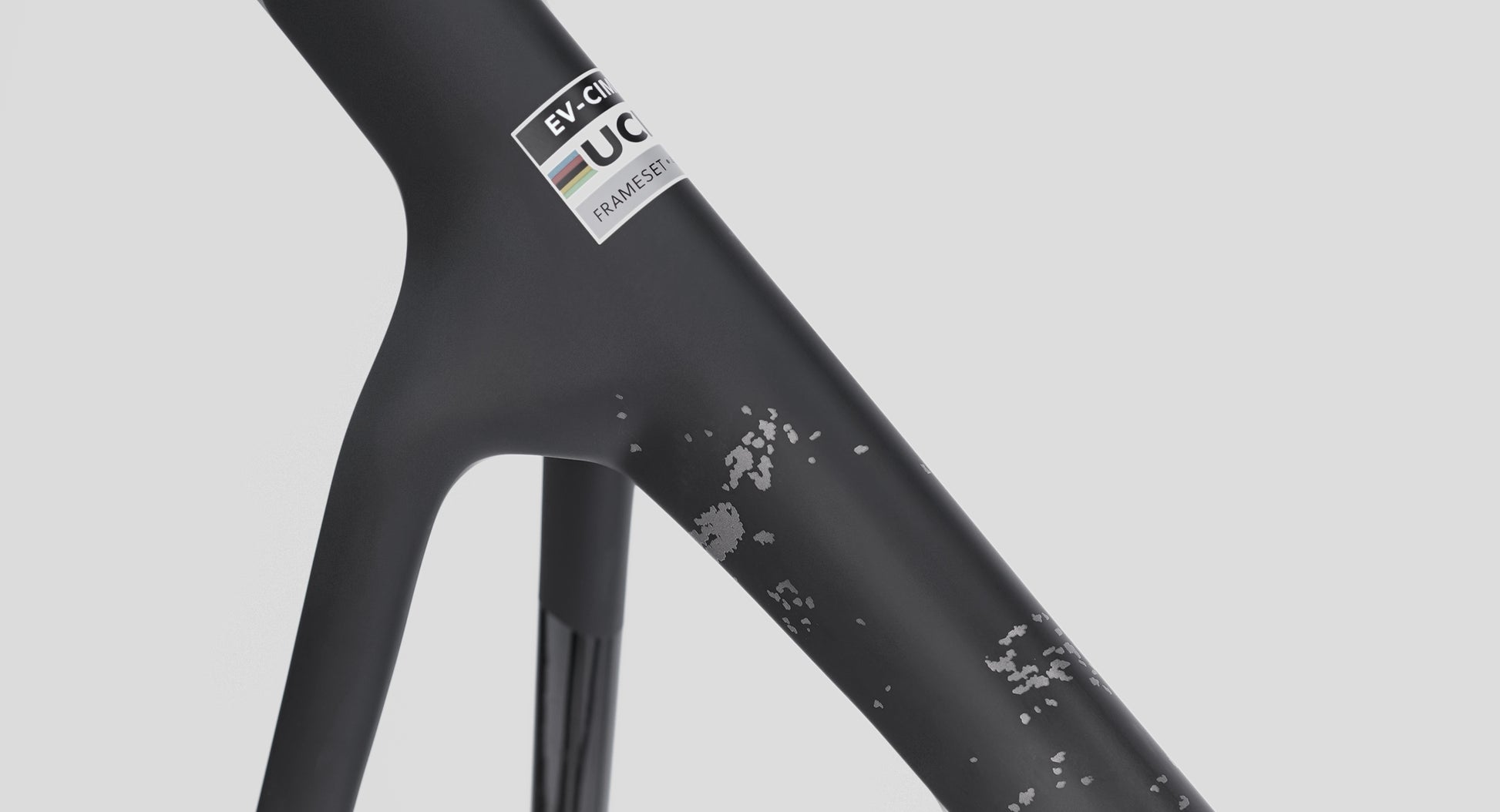

Certification    UCI Approved; CE Certified
Limited Rider Weight    109kg
