INCOLOR SSR FRAMESET

Radical Aero Engineering // Customizable Racing Geometry

🎁 Exclusive Launch Bonus: Every order receives 2 pairs of Incolor Aero bottles and Aero cages.
Plus, customize your package by selecting ONE of the following premium options at checkout:

• Elilee X310 Titanium/DUB Crankset (With Spider included)
• Elilee Standard EK-01 Power Meter Spider
• Elilee X260 40% Off Purchase Coupon

"Boldly after high standards" is the driving spirit behind the INCOLOR team. The INCOLOR SSR is a radical exploration in minimizing frontal area and tube surface profiles to produce a noticeably faster bicycle. By breaking engineering barriers with a proprietary Dual Steer Tube structure, the head tube width is compressed to a razor-thin 34mm—slicing overall frontal area down to an elite 586.59 cm². Combined with an integrated seat post system to shed absolute grams, the SSR delivers massive aerodynamic savings verified by the Silverstone Sports Engineering Hub (SSEH) without succumbing to the fragile nature of typical ultra-light frames.

📦 What's Included: Frame, Fork, Seatpost, Aerowav Integrated Handlebar, Thru-Axles, Headset, and Titanium 3D-Printed Accessory Package.

Material & Composite	Ultra-Premium 80T (Pitch-based) + T1100 Carbon Fiber Composite Blend. Renewed laminate scheme utilizing 3x more 80T carbon fiber compared to the SR+.
Molding Technology	EPS + Latex internal molding technique ensuring smooth composite compaction and a lighter overall livery surface structure.
Bottom Bracket (BB)	T47A Deep Section Bottom Bracket (Optimized for maximum pedaling stiffness and power delivery).
Tire Clearance	Up to 38C (Generous room for modern wide road and rough-road configurations).
Seatpost Hardware	Integrated configuration with both 0mm offset and 10mm offset options available.
Steer Tube Design	Dual Steer Tube Design. The internal steer tube retains a standard 28.6mm dimension, ensuring complete compatibility with ordinary integrated cockpits while doubling front-end rigidity.

Component Component	SSR Module Specs	Raw Base Spec Only
Frame Weight	750g (Size 54, raw/unpainted)	Total Module Package: 1,680g
Fork Weight	380g
Seatpost Weight	50g
Small Accessories Package	128g

Wind Tunnel Performance Realities (Silverstone Hub Testing)

• Hyper-Narrow Profile: Reconfigured head-tube reduces traditional width markers to an elite 34mm, creating a massive 6.4% reduction in aerodynamic frontal area compared to preceding performance frames.
• Yaw Optimization: Saves a verified 5.35W of aerodynamic drag at maximum values within critical 0-5° yaw pathways against older architectures.
• Peloton Benchmarking: Demonstrates an average power savings threshold of 3.99W across comprehensive 0-20° crosswind sweeps tracked at pro-pace speed intervals (45kph).

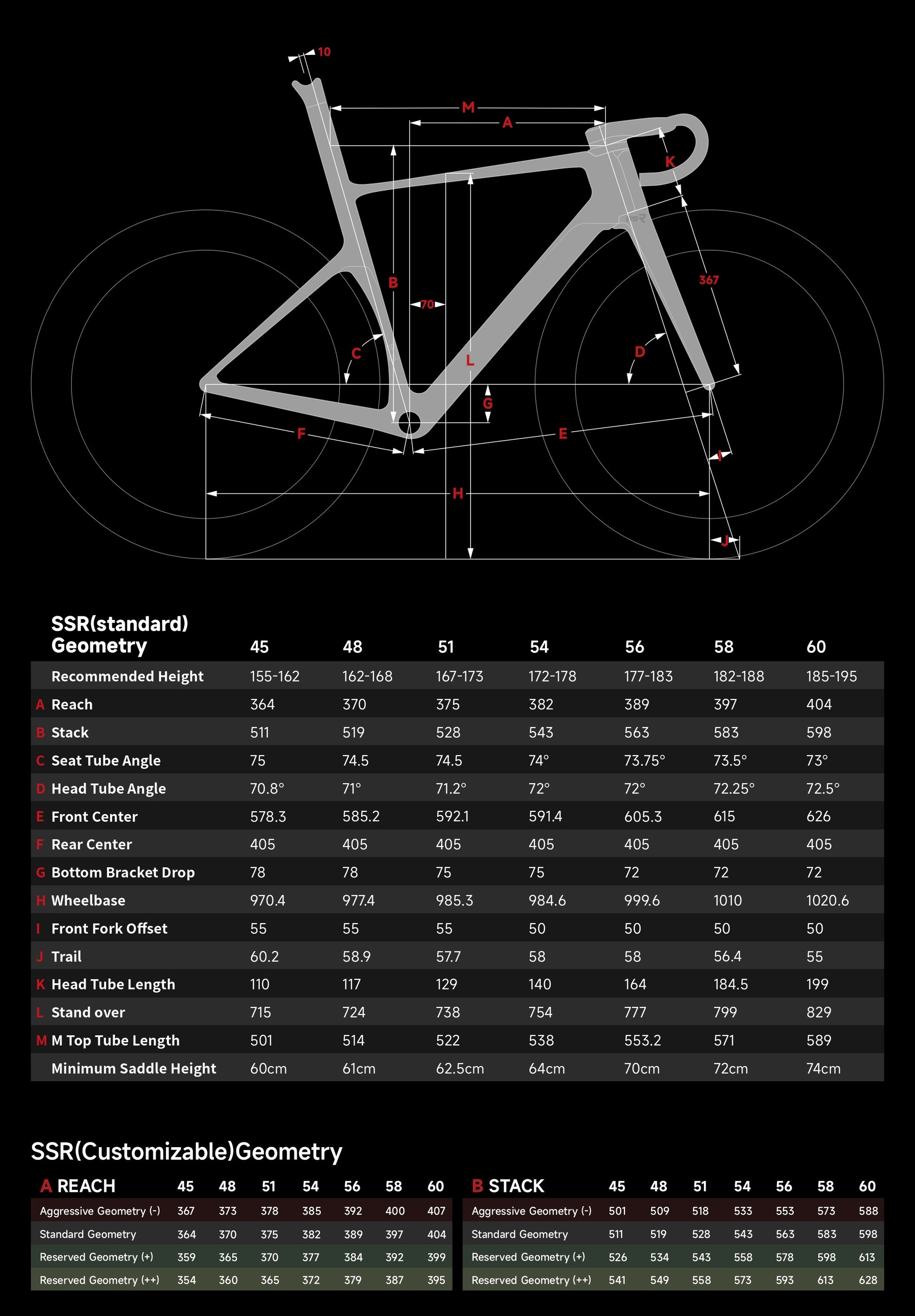

• First Non-Compromising Custom Fit: Built with variable, customizable geometry profiles. Select sizes receive custom Reach and Stack variance settings across Aggressive (-), Standard, or Reserved (+) presets to perfectly align biomechanical placement without shedding aero efficiency.

1. Defect Replacement Guarantee: Coverage includes complete hardware fault protections originating from materials or factory production lines. Operates on a strict Replacement-Only Policy (No repairs). In the event of legacy line discontinuation, an updated platform variant of equivalent tiering will be supplemented.
2. Minor Incident Management: For mild accidental damage, factory-certified official restoration services are fully accessible to original owners at dedicated discount pricing tiers.
3. Crash Replacement Tiering: In the event of critical or catastrophic impacts, original owners are backed by a consistent 30% loyalty discount toward a brand-new replacement module.
