QUICK CARBON HANDLEBAR
QUICK CARBON HANDLEBAR
Couldn't load pickup availability

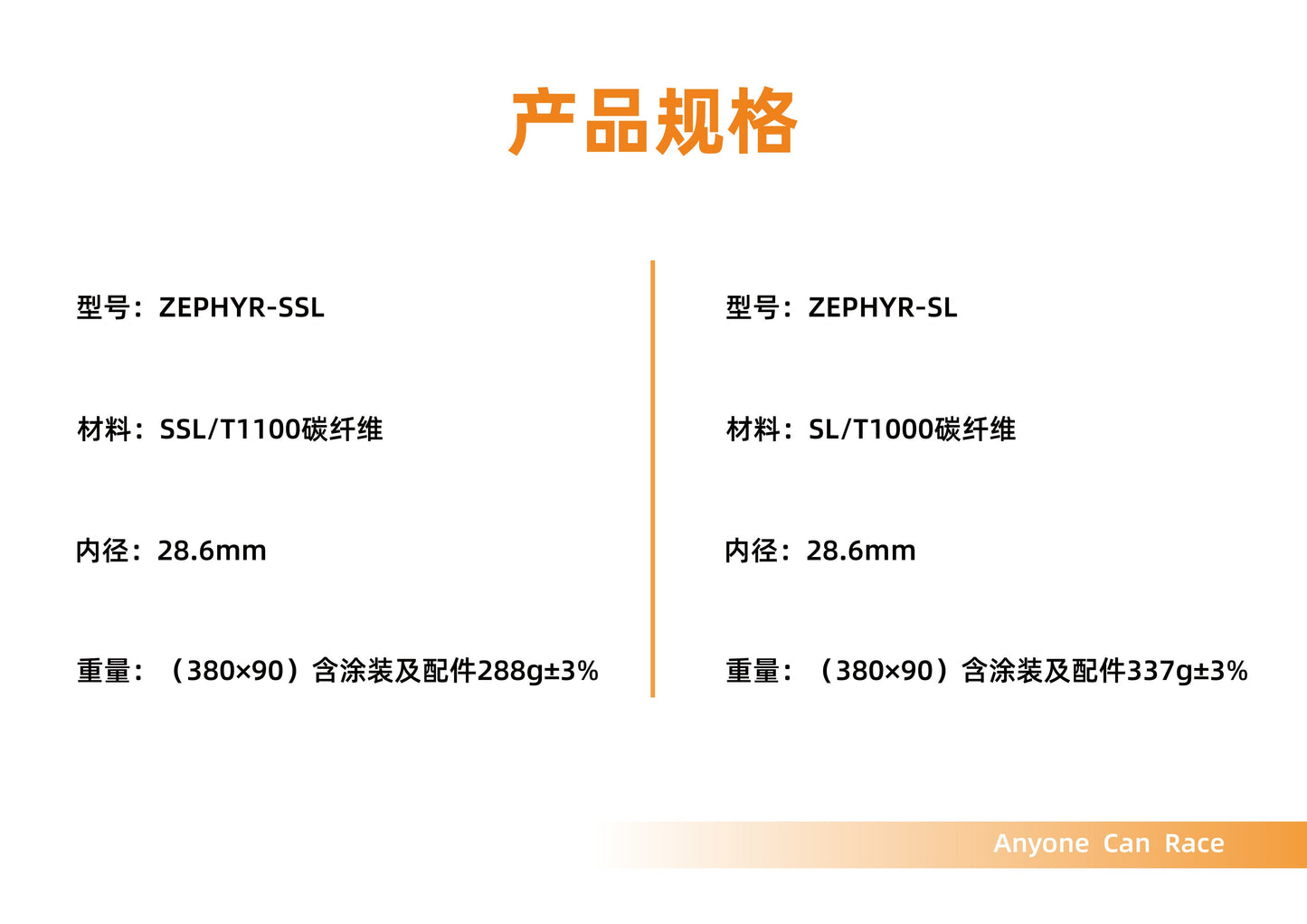

- Lightweight design: 288g±3% (380*90mm)
- Fully internal cable routing compatible
- Fusion of Nanotechnology and Advanced Carbon Fiber
- One-Piece Molding Technology
- Reach: 75mm
- Drop: 125mm
- Stack: 37mm
- Drop Flare: 6.1°
- Stem Angle: -8°
Monocoque Design for Optimal Integration
Crafted with advanced monocoque molding technology, this integrated handlebar eliminates bonded joints, enhancing stiffness and reducing weight. The seamless structure prevents fiber bunching during production, ensuring smoother cable routing for electronic drivetrains.
High-Performance Carbon Layup
Using Toray T1100 and M65 carbon fibers, the handlebar's hybrid layup achieves a balance of lightness, stiffness, and impact resistance. Nano-resin technology further enhances durability under high loads, meeting the demands of modern road cycling.
Optimized for Aggressive Riding
Designed for sprinting and climbing, the handlebar offers exceptional torsional stiffness and stability, minimizing flex under load. This ensures precise handling and reliable performance for serious road cyclists.
Geometry
| A Hood-to-hood (mm) | 340 | 360 | 380 | 400 | 420 |
| B Drop-to-drop (mm) | 366.5 | 386.5 | 406.5 | 426.5 | 446.5 |
| C Stem Length (mm) | 70-110 | 80-140 | 80-140 | 80-140 | 90-140 |
| D Flare Angle (°) | 6.1° | 6.1° | 6.1° | 6.1° | 6.1° |
| E Stem Angle (°) | -8° | -8° | -8° | -8° | -8° |
| F Stack (mm) | 37 | 37 | 37 | 37 | 37 |
| Reach (mm) | 75 | 75 | 75 | 75 | 75 |
| Drop (mm) | 125 | 125 | 125 | 125 | 125 |
