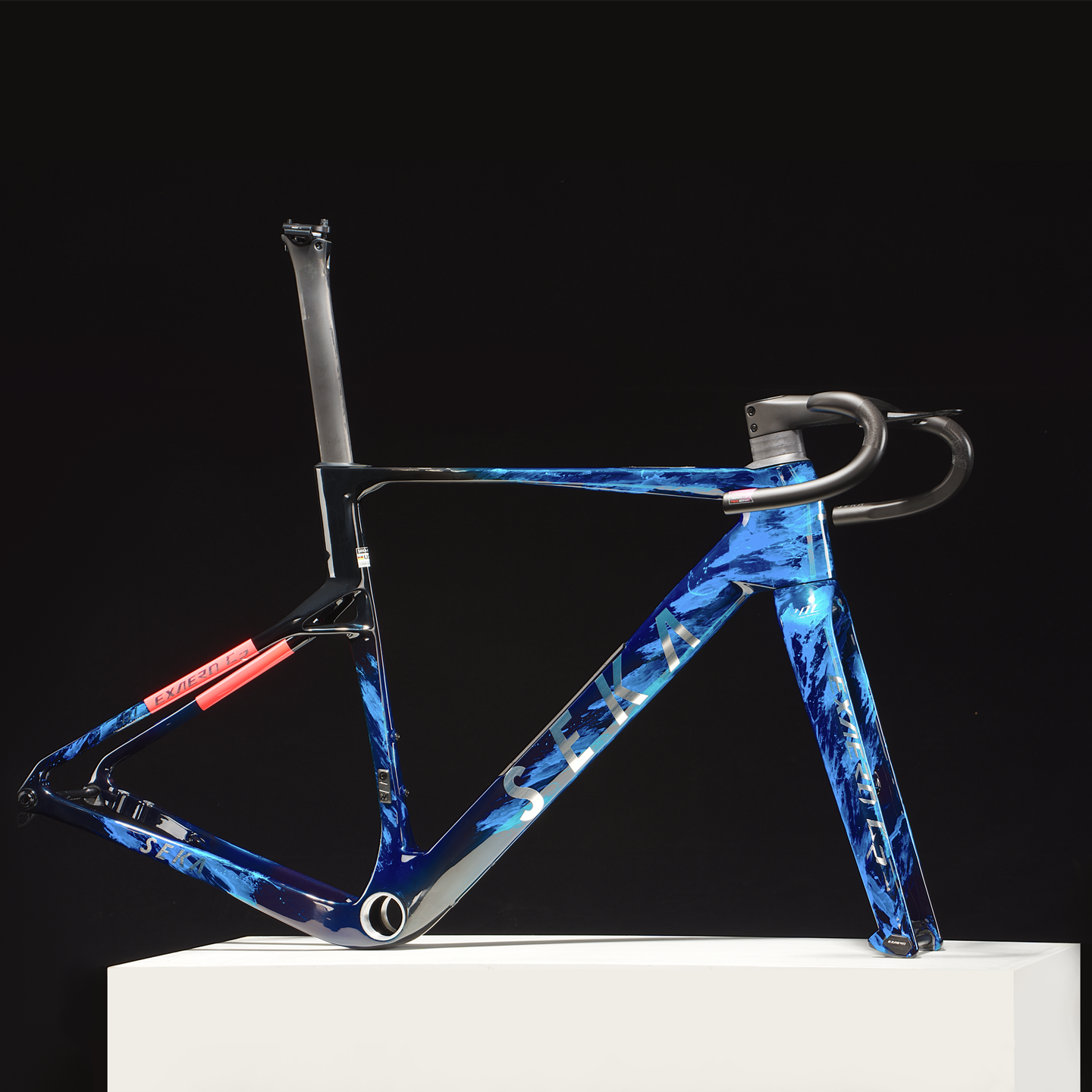

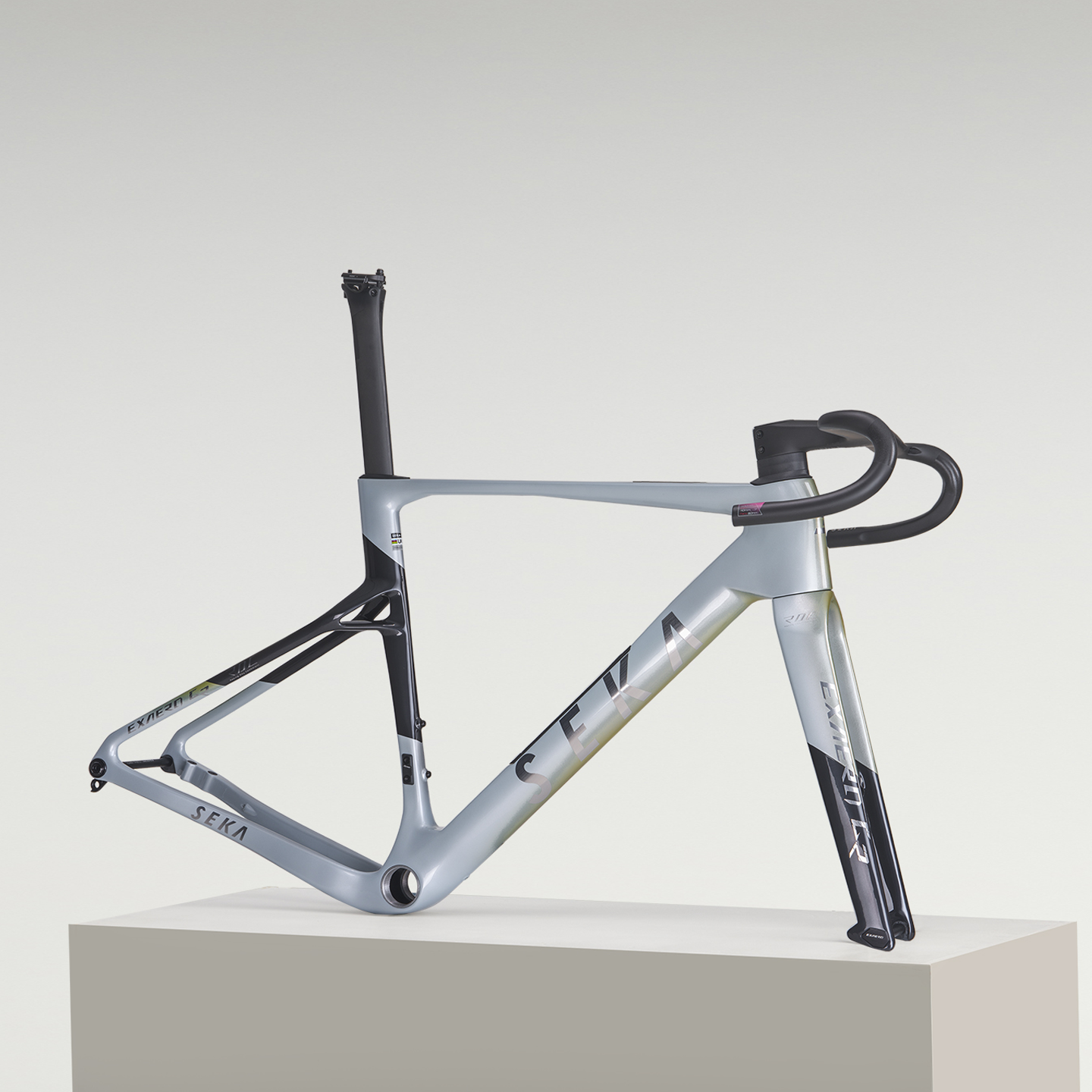

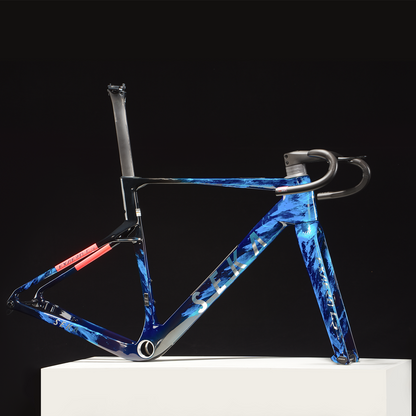

GLADIUS GR CARBON FRAMESET

Premium High-Performance Gravel Platform // Total Terrain Control

💡 IMPORTANT COCKPIT SELECTION: You can select your custom handlebar specs by writing your desired bar size in the "Customer Notes" section during checkout!

Estimated Lead Time: 1 Month

Engineered out of absolute multi-surface confidence, the Gladius GR is built to dictate the rules of gravel racing. Blending unmatched compliance and immense tire clearances with wind-tunnel optimized aerodynamic profiles, this high-performance carbon platform acts as a visual and performance focal point across any terrain.

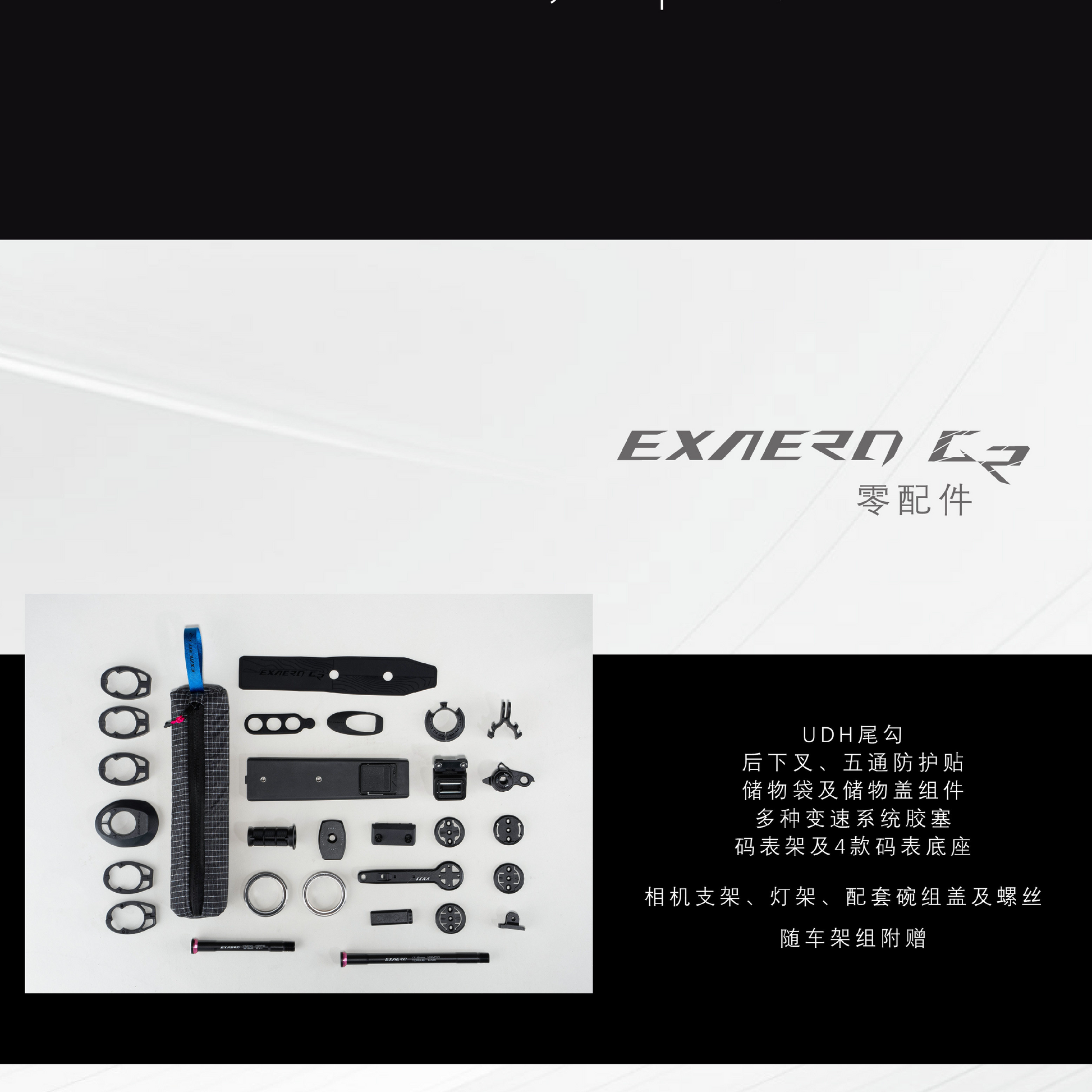

📦 Bonus Inclusion: Every frameset purchase includes the matching Gladius GR Integrated Handlebar (Frame, Fork, Seatpost, and Integrated Cockpit included).

Frame Construction	T1000 / T800 / T700 Carbon Fiber Monocoque structure
Frame Weight	980g (Size 54cm frame)
Fork Standard	Full carbon construction equipped with discrete fender mounts
Bottom Bracket (BB)	T47 68mm External Threaded Bottom Bracket System
Cable Routing	Fully Internal System Routing for a completely clean, hidden aesthetic
Tire Clearance	Supports massive multi-surface configurations up to 56mm front / 52mm rear max
Component Standards	• Rear Dropout: UDH (Universal Derailleur Hanger) • Seatpost System: Proprietary D-Shaped Carbon (0mm or 15mm offset options)
Available Sizes	48, 51, 54, 56, 58

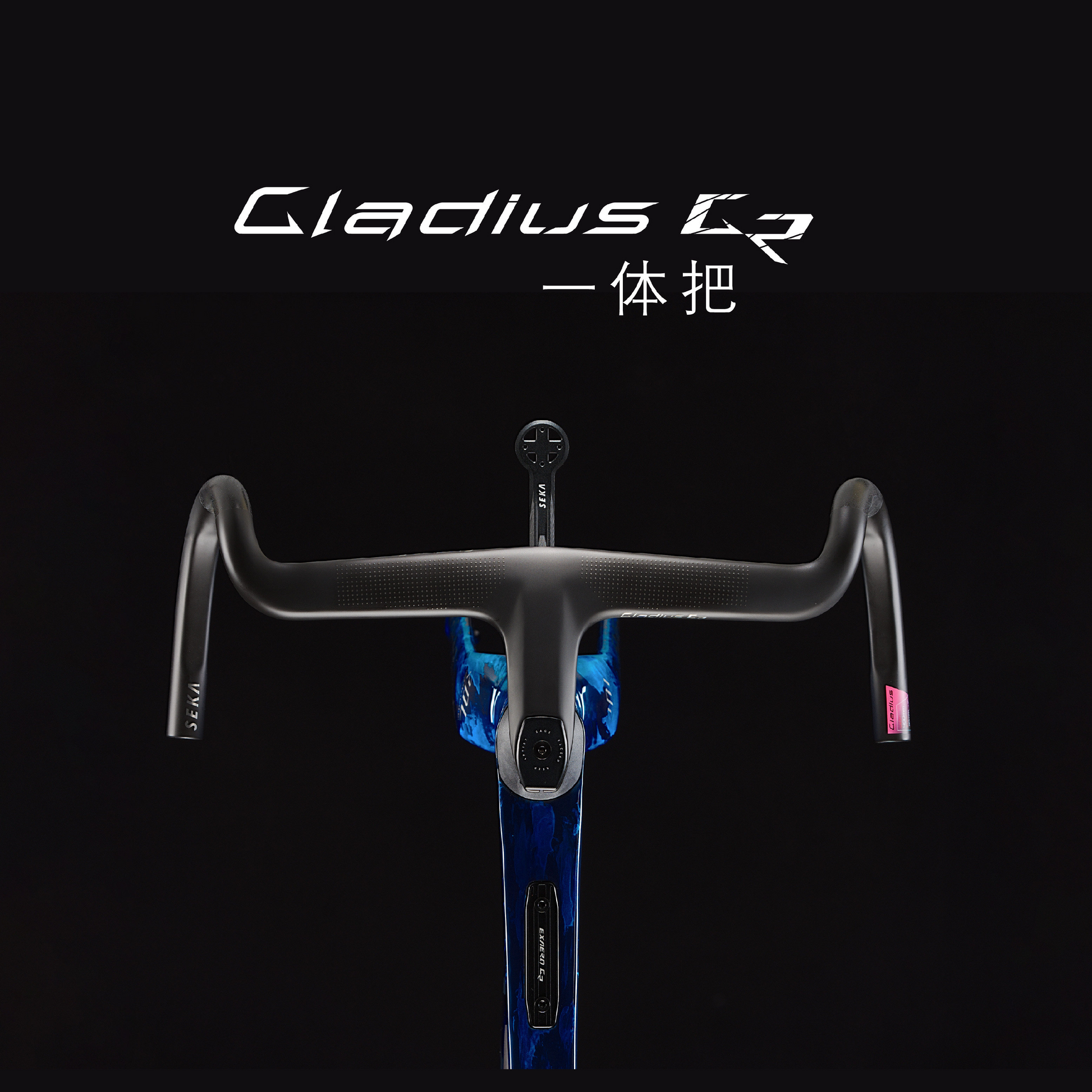

Included Gladius GR Handlebar Specs

A full UD carbon monocoque integrated cockpit engineered to match the frame’s aerodynamics while keeping front-end setups flawless.

Geometry Profiles	16° Flare for off-road control // 69mm Reach // 118mm Drop
Weight Profile	≈395g (400/460-90 combo, excluding hardware)
Mount System	Fully compatible with the Rapier computer mount standard
Sizing Matrix	Up to 15 distinct sizing combinations available. Any width and length can be freely combined: • Width Options: 380/440mm · 400/460mm · 420/480mm • Length Options: 80mm · 90mm · 100mm · 110mm · 120mm

Frameset Product Highlights

• Integrated Aero Storage: Dedicated downtube storage compartment completely cuts out traditional saddlebag drag while providing multiple integrated mounting layouts for fuel and tool accessories.
• WindEye Technology: A highly unique, compliant seatstay profile engineered to actively damp rough trail chatter under a balanced 106 N/mm compliance rating without sacrificing competitive race stiffness.
• Ultimate Tire Clearance: Uncompromising surface flexibility. Comfortably fits ultra-wide 700x45mm or 650x50mm setups, with a maximum clearance blueprint accommodating up to 56mm up front and 52mm in the rear.
• Proven Aerodynamics: Thoroughly wind-tunnel optimized alongside AeroCoach. Utilizes specialized proprietary aero bottles engineered to save an actionable 5.7W at cruising speeds.
