SHIMANO 105 Di2 R7170 Disc Brake Di2 Groupset (Bottom Bracket Not Included)

SHIMANO 105 Di2 R7170 Disc Brake Di2 Groupset (Bottom Bracket Not Included)

Shifter/Brake Lever: SHIMANO 105 Di2 ST-R7170 2x12-speed + Disc Brake BR-R7170 Flat Mount
The dual-control shift/brake levers ensure you remain in complete control of your bike at all times. The raised hoods offer multiple grip options, allowing your hands and arms to change positions regularly and reduce fatigue. Shifting is effortless with just a touch of a button, and the precise pressure point makes unintentional gear changes nearly impossible. This wireless system is fully customizable via the Shimano E-Tube app, allowing you to adjust shifting speed, choose between fully or semi-synchronous shifting modes, and assign specific functions to the program buttons on the lever. Energy consumption is remarkably low, with the two CR1632 button cells powering the electronics for over 3 years. The absence of wiring simplifies installation and ensures a clean, tidy cockpit.

The brake lever's ergonomics have been significantly improved, featuring a deeper recessed grip and rounded hoods that provide a secure hold, even during long descents. The grip width is individually adjustable, making it easier for riders with smaller hands to brake effectively.

The redesigned brake caliper delivers exceptional braking power, eliminating brake rub and squealing. The standard L05A-RF resin brake pads with cooling fins ensure stability under high loads, while the increased distance between the brake pads (approx. 10%) simplifies adjustment and prevents grinding noises. Maintenance tasks, such as bleeding, are straightforward for moderately skilled cyclists.

Brake Rotor: SHIMANO Ultegra Center Lock RT-CL800 | 160 mm
The Ultegra CL800 brake rotors feature Shimano’s Ice-Tech cooling technology, which prevents heat-related deformation and ensures reliable, controllable braking performance. The three-layer sandwich construction (stainless steel sides with an aluminum core) improves heat dissipation, reducing temperatures by approximately 100°C. The FREEZA aluminum cooling fins further lower the system temperature by 50°C, allowing for the use of smaller brake discs and extending brake pad lifespan. The Center-Lock mount ensures quick, secure installation and a clean, compact appearance.

Crank: SHIMANO 105 FC-R7100 50-34 Teeth | 2x12-speed
The 105 crank efficiently converts pedal power into propulsion, offering high rigidity for fast and precise shifting. The optimized tooth design of the chainrings enhances aerodynamics, while the Hollowtech II design keeps weight to a minimum.

Front Derailleur: SHIMANO 105 Di2 FD-R7150 | 2x12-speed
The electronic front derailleur shifts seamlessly at the touch of a button, automatically adjusting its position to avoid chain rub. Using the Shimano E-Tube app, you can fine-tune the derailleur and select manual, fully, or semi-synchronous shifting modes.

Rear Derailleur: SHIMANO 105 Di2 RD-R7150 | 2x12-speed
The rear derailleur delivers lightning-fast shifts, powered by a reliable integrated motor. It also houses the charging port, which fully charges the system in approximately 1.5 hours. The narrow Shadow profile reduces the risk of damage in case of a fall.

Cassette: SHIMANO 105 CS-R7100 | 12-speed 11-34 Teeth
The Hyperglide cassette ensures smooth shifting across the entire gear range, even under maximum load. Despite the additional 12th sprocket, it remains compatible with 11-speed Shimano Road freehub bodies.

Chain: SHIMANO 105 | GRX | SLX CN-M7100 12-speed | 116 Links with Chain Lock
The chain features cut-outs for better engagement with the Dynamic Chain Engagement+ (DCE+) chainrings, ensuring a quieter and smoother ride. The SIL-TEC coating maintains durability despite the narrower design.

Battery: BT-DN300 Internal Battery
The latest-generation internal battery is discreetly housed in the seat post or steerer tube, maintaining a clean aesthetic and reducing wind resistance. It can be charged while installed in the bike.

E-Tube Cable: SHIMANO EW-SD300-I Internal
These compact cables connect all components of the Shimano Di2 system, simplifying internal routing and reducing weight.

Technical Data:

• Material: Aluminum, Plastic

• Gears: 2x12

• Brake Type: Hydraulic Disc Brake

• Brake Mounting: Flat Mount (adapter may be required for the rear, depending on the frame)

• Crankshaft: 24 mm

• Crank Length: 175 mm

• Chainring Configuration: 50-34 Teeth

• Chainring Mount: 110 mm 4-arm | Shimano Asymmetrical

• Cassette Configuration: 11-34 Teeth

• Freehub Compatibility: Shimano 11-/12-speed Road

• Front Derailleur Mount: Braze-on (clamp optional)

• Battery Life: Approx. 2000 km

• Color: Black, Silver

Weight:

• Manufacturer’s Spec: N/A

• Self-weighed: 2889g (ready to ride), 6040g (box complete)

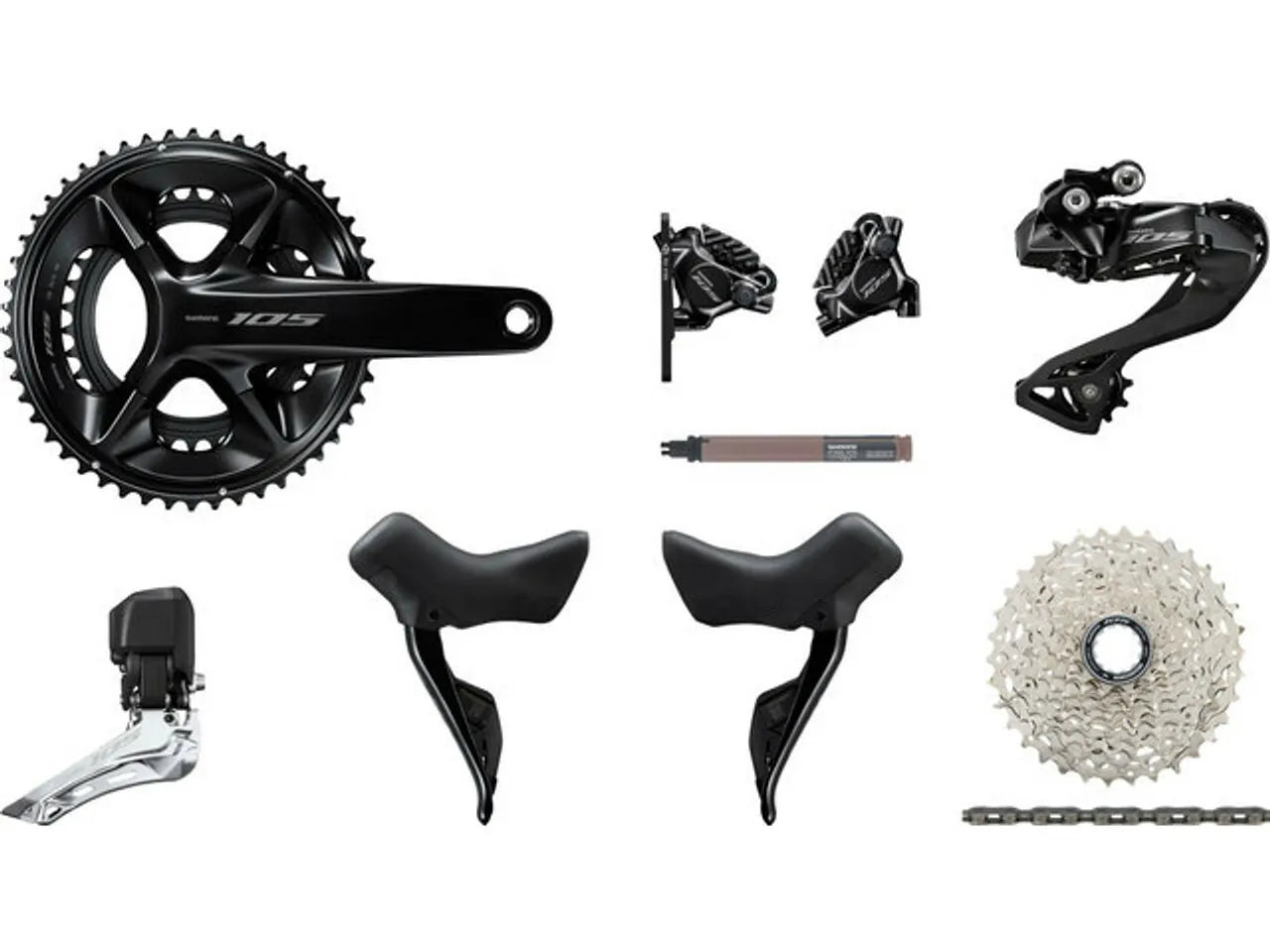

Scope of Delivery:

• 1x SHIMANO 105 Di2 Shift/Brake Lever ST-R7170 2x12-speed + Disc Brake BR-R7170 Flat Mount (Front)

• 1x SHIMANO 105 Di2 Shift/Brake Lever ST-R7170 2x12-speed + Disc Brake BR-R7170 Flat Mount (Rear, without 160 mm adapter)

• 2x SHIMANO Ultegra Center Lock RT-CL800 Brake Rotors | 160 mm

• 1x SHIMANO 105 Crank FC-R7100 | 2x12-speed 175 mm

• 1x SHIMANO 105 Di2 Rear Derailleur RD-R7150 | 2x12-speed

• 1x SHIMANO 105 Di2 Front Derailleur FD-R7150 | 2x12-speed

• 1x SHIMANO 105 Cassette CS-R7100 | 12-speed 11-34 Teeth

• 1x SHIMANO 105 | GRX | SLX Chain CN-M7100 12-speed | 116 Links with Chain Lock

• 1x SHIMANO BT-DN300 Internal Battery

• 1x SHIMANO E-Tube Cable EW-SD300-I | 600 mm

• 1x SHIMANO E-Tube Cable EW-SD300-I | 1200 mm

• 1x SHIMANO Charging Cable EW-EC300

Note: Bottom Bracket Not Included.
