SHIMANO ULTEGRA R8170 DI2 DISC BRAKE 12 SPEED GROUPSET (NOT INCLUDING Bottom Bracket)

SHIMANO ULTEGRA R8170 DI2 DISC BRAKE 12 SPEED GROUPSET (NOT INCLUDING Bottom Bracket)

With the components of the 8100 Ultegra series, Shimano offers you an excellent price-performance ratio. You can see the Japanese company's years of experience in every detail. Whether functionality, durability or weight, top values are achieved everywhere. Shimano is also revolutionizing Di2 components with this top groupset. From now on, shifting commands are transmitted without cables. The wireless technology with the transmission protocol developed exclusively for this purpose guarantees you the fastest shifting operations that are currently possible in the bicycle sector. To make the rear derailleur and front derailleur as compact and streamlined as possible, these components are still connected to the new internal BT-DN300 battery via an E-Tube cable.

Ultegra Di2 shift lever ST-R8170 set and BR-R8170 flat mount disc brake set
One push of a button and the gears are engaged quickly and reliably. The precise pressure point of the levers ensures that the gear changes are only triggered when the rider consciously shifts gears. Accidental operation is not to be feared. The wireless chip also scores points for its low energy consumption. The CR1632 button cell has a service life of over 1.5 years. This system is fully customizable with the Shimano E-Tube app. This allows the shifting logic to be adapted to the rider's preferences. Among other things, the shifting speed can be set, a fully or semi-synchronous shifting mode can be selected and the program buttons on the lever can be assigned specific functions.
When braking, SERVO WAVE technology gives you optimum control over your bike at all times. This offers unparalleled modulation and sufficient power. But it's not just the inner values that are impressive. The ergonomics have also been significantly improved. The grip recess is better shaped and the rounded brake levers lie securely under your fingers even on long descents. The grip width can also be individually adjusted. The completely redesigned ULTEGRA BR-R8170 brake caliper enriches the world of road bikes with a new level of control, optimized modulation and unprecedented braking power. The new design minimizes brake rubbing. In addition, despite its compact size, this system is quieter and easier to maintain than ever before.

FC-R8100 2x crankset
The Ultegra FC-R8100 crank not only converts your pedal power into propulsion, with its high rigidity it also ensures extremely fast and precise shifting. The high shifting precision is supported by the optimized chainring design.In order to keep the weight low, the Japanese continue to rely on the proven Hollowtech II design of the crank arms. The crank is available in gear ratios of 52-36 teeth and 50-34 teeth and with crank arm lengths of 160 to 175 millimetres.

Rear derailleur RD-R8150 Di2 Shadow
The compact Ultegra 8150 rear derailleur delivers lightning-fast yet precise shifting. Even under medium and high loads, thanks to the low profile design and Shimano Shadow+ technology, gears are changed quickly and without major noise development. There is no noisy clunking or rattling with these high-tech components! Despite its slim dimensions, the rear derailleur houses the battery charging port and the wireless mode button. With just one cage length, the rear derailleur shifts on cassettes from 11-30 teeth to 11-34 teeth, thus increasing the versatility of the top Japanese component group.

FD-R8150 Di2 front derailleur
The Ultegra R8150 front derailleur is more compact than ever before and a real powerhouse. The front derailleur shifts absolutely seamlessly between the chainrings and performs its shifting operations with digital precision in all conditions. The reduced frontal contact surface has also made it possible to reduce air resistance.

BT-DN300 internal battery
Integrated battery of the latest generation, which is recessed in the seat post or steerer tube. The internally routed cables give the road bike a tidy appearance. The integration of the battery into the frame also reduces the number of attachments that stand in the wind. The battery can remain in the bike for charging.

CS-R8101 cassette
The revised CS-R8101 cassette makes shifting even faster and smoother. You can shift gears without hesitation even when exerting maximum force on climbs or sprinting to the finish line. This is made possible by a slightly optimized tooth profile.
Shimano also uses Hyperglide+ technology, which has proven itself in the off-road sector. This significantly reduces the time required for both upshifting and downshifting and, compared to conventional HG systems, enables smoother pedalling.
Despite the new design and the additional 12th sprocket, the CS-R8101 cassettes are also compatible with previous 11-speed Road freehub bodies.

Ultegra chain | XT chain CN-M8100 12-speed
The CN-M8100 is characterized by its particularly smooth chain operation. This is not only noticeable when pedaling, but is also noticeable acoustically thanks to a 4db quieter drive. Thanks to a new chrome-plated surface in combination with the proven SIL-TEC coating, the service life of the chain has been kept at the same level as the M8000 chain, despite a smaller outer width.


Technical data:

Material: aluminum, plastic
Gears: 2x12
Brake type: hydraulic disc brake
Brake mounting: Flat mount
Crankshaft: 24 mm
Crank length: 170; 172.5 or 175 mm
Chainring gradation: 50-34 or 52-36 teeth
Chainring mount: 110 mm 4-arm | Shimano asymmetrical
Cassette gradation: 11-30 or 11-34 teeth
Freehub body compatibility: Shimano 11-/12-speed Road
Front derailleur mounting: braze-on (clamp optionally available)
Battery life: approx. 2000 km
Color: grey

Weight according to manufacturer: n.a.
Weight self-weighed: from 2430g (without bottom bracket and without charging cable)

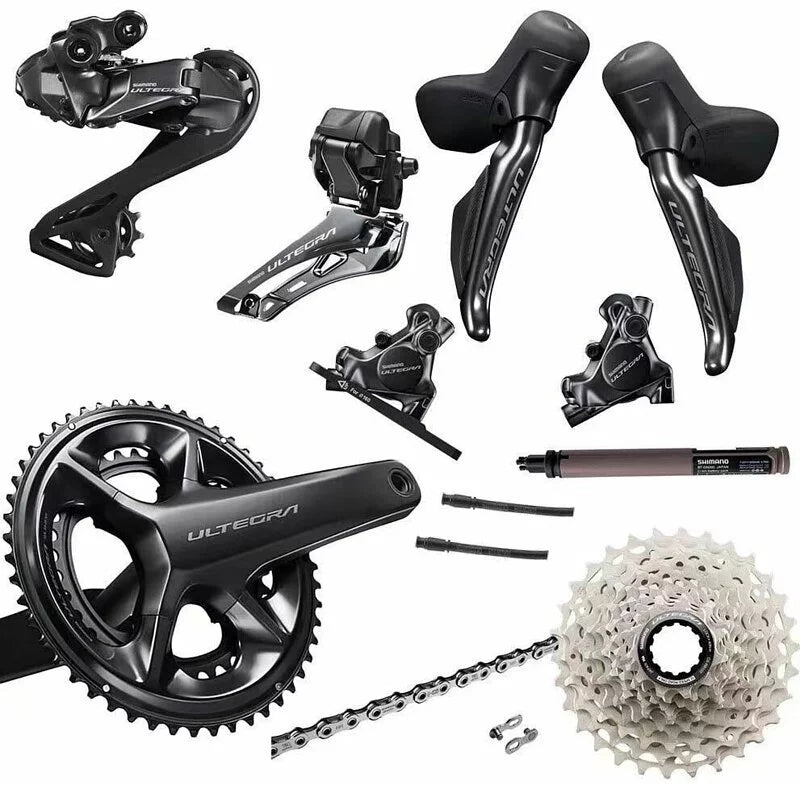

Scope of delivery:

1x Shimano Ultegra FC-R8100 2x crankset
1x Shimano Ultegra shift/brake lever set ST-R8170 Di2 Including flat mount brake caliper BR-R8170 set front/rear with filled brake lines
1x Shimano Ultegra rear derailleur RD-R8150 Di2 Shadow+
1x Shimano Ultegra front derailleur FD-R8150 Di2
1x Shimano BT-DN300 internal battery
1x Shimano cassette CS-R8101
1x Shimano Ultegra | XT chain CN-M8100 12-speed | 116 chain links including Quick Link chain lock
1x EW-EC300 charging cable

NOT INCLUDING Bottom Bracket
