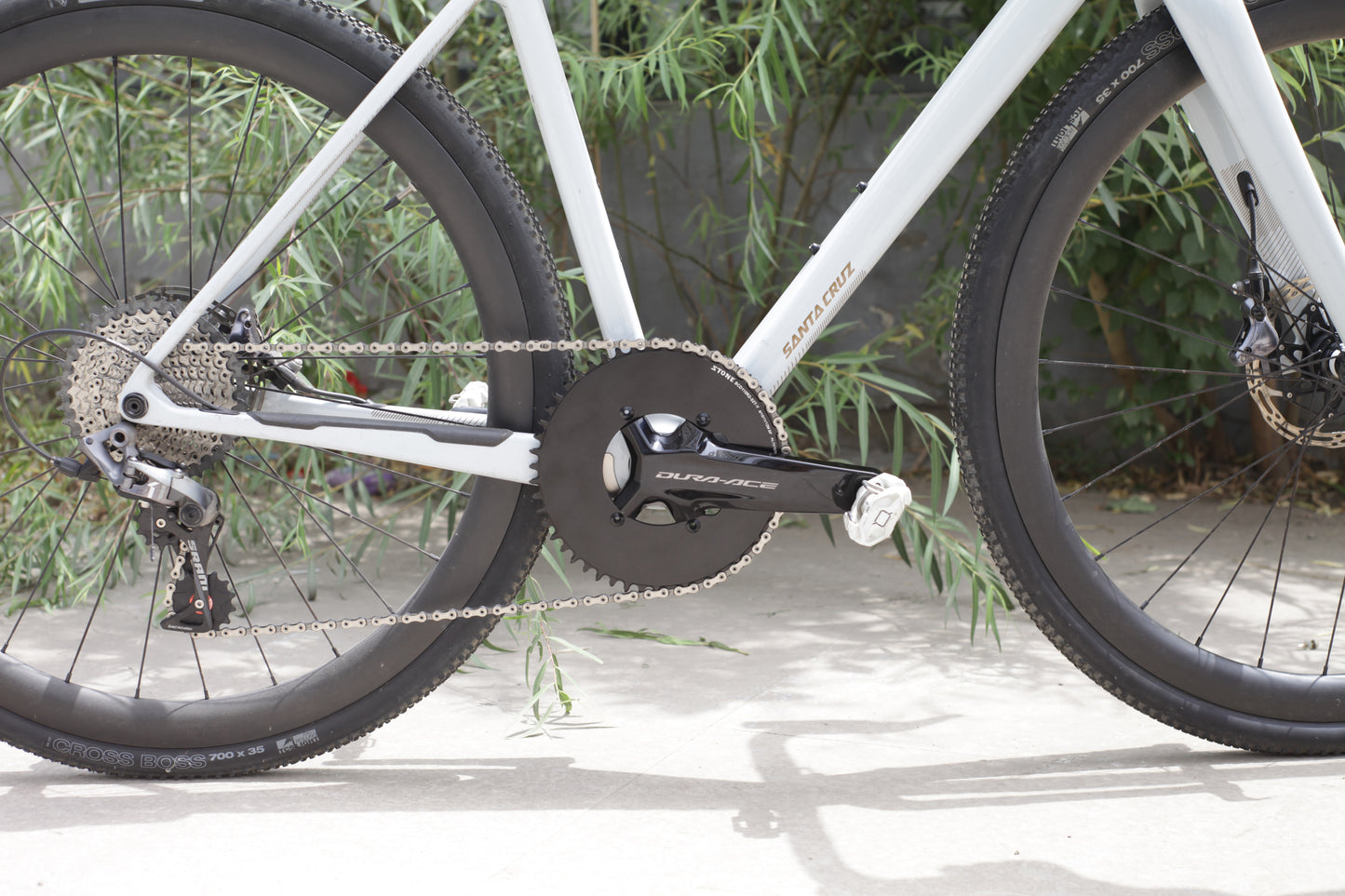

Stone 1x Narrow Wide Chainring 110BCD 4 Bolt

Stone 1x Narrow Wide Chainring 110BCD 4 Bolt

$430.00 HK
$430.00 HK
Sale Sold out
Shipping calculated at checkout.
Style
Size

Hollow Version:
Simplistic design, suitable on Shimano cranks and crank arm with power meter
Note: Smaller chainrings may interfere with certain crank arm power meters

Aero Version:
Aero design reduce wind resistance, improving aerodynamics
Higher stiffness ensuring inproved power transfer
Note:

  • Certain crank arm power meter are incompatible
  • Noisier drive train compared to hollow version
  • Only the hollow version is available for sizes 34-42T

SPEC

Material: AL7075-T651

Made: CNC Milling, Anodized surface

Compatibility: Supports 9-11 Speed Chains, Incompatible with SRAM's 12 speed Flattop Chain

BCD: 110 BCD Asymmetric 4-Bolt for Shimano

Teeth Weight(g) Hollow Version Weight(g) Aero Version Diameter (mm)
34 43 146
36 55 154
38 65 162
40 77 172
42 80 178
44 92 99 186
46 99 109 194
48 109 116 202
50 116 127 210
52 123 139 219
54 129 150 226
56 142 164 235
58 152 190 242
60 161 210 250

Notes:

  • When using 12 speed Shimano chain, please replace the Shimano quick link with KMC 12 speed quick link
  • The 34t and 36t chainrings can only be fitted in the position of the smaller chainring
  • Chainring bolts are included in this package
  • Cover caps for the chainring bolts are NOT included
